基于Kubernetes的动态Agent

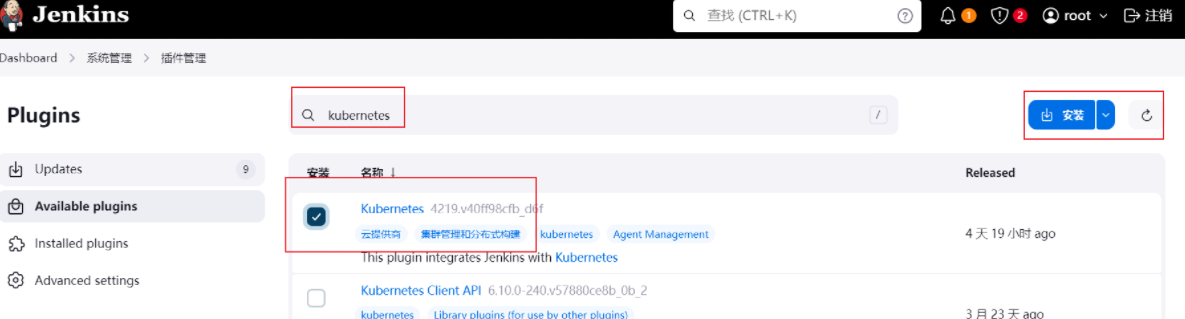

安装kubernetes插件

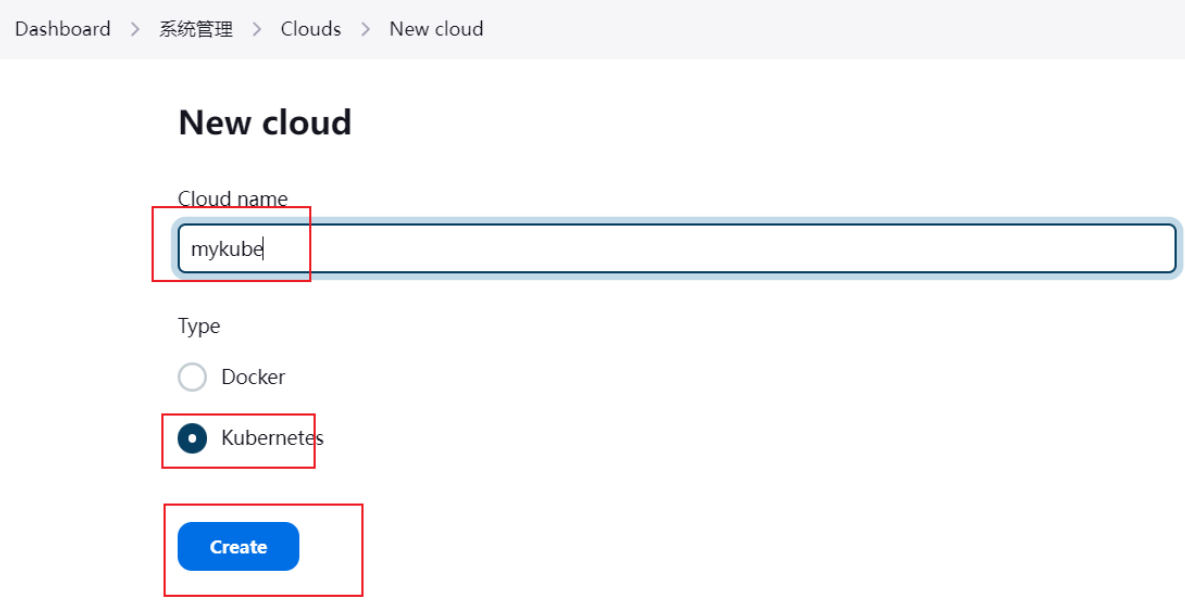

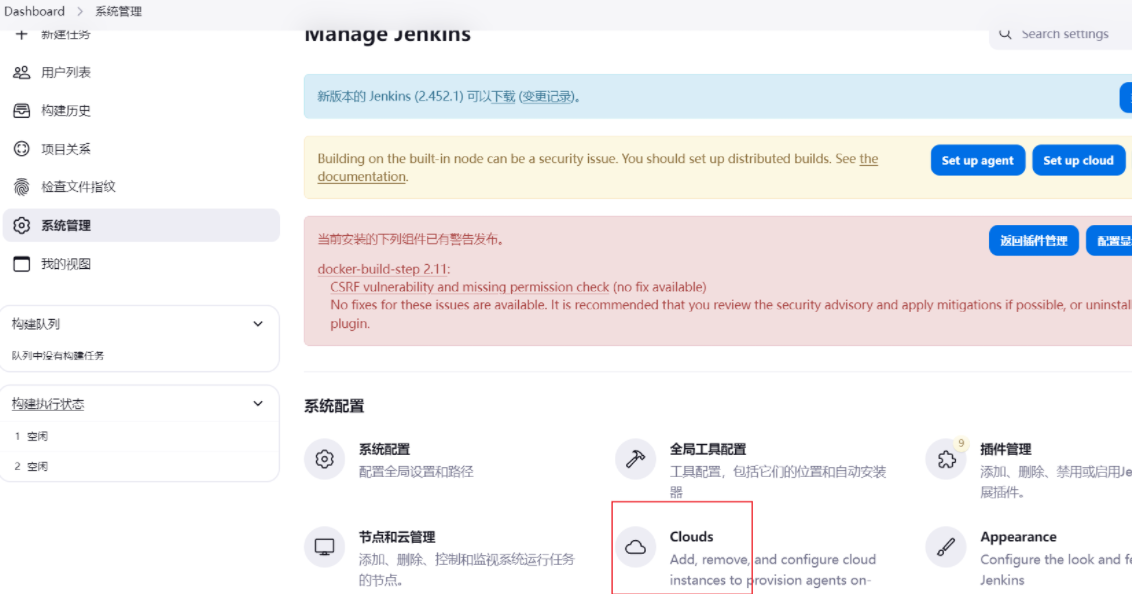

配置对接kubernetes

kubernetes创建对应名称空间和serviceaccount

 root@k8s-master01:~# kubectl create ns jenkins
 root@k8s-master01:~# kubectl create serviceaccount jenkins-master -n jenkins
 oot@k8s-master01:~# kubectl create  rolebinding  jenkins-master --clusterrole=admin --serviceaccount=jenkins:jenkins-master  -n jenkinsrolebinding.rbac.authorization.k8s.io/jenkins-master created
 root@k8s-master01:~# kubectl get rolebinding jenkins-master -n jenkins
 NAME             ROLE                AGE
 jenkins-master   ClusterRole/admin   29s

获取密钥

 root@k8s-master01:~# cat 1.yaml
 apiVersion: v1
 kind: Pod
 metadata:
   name: mypod
   namespace: jenkins
 spec:
   containers:
   - name: demoapp
     image: ikubernetes/demoapp:v1.0
   serviceAccountName: jenkins-master

 root@k8s-master01:~# kubectl apply -f 1.yaml
 root@k8s-master01:~# kubectl get pod -n jenkins
 NAME    READY   STATUS    RESTARTS   AGE
 mypod   1/1     Running   0          28s
 `进入pod获取密钥`
 root@k8s-master01:~# kubectl exec -it mypod -n jenkins sh
 [root@mypod /]# cd /var/run/secrets/kubernetes.io/serviceaccount/
 [root@mypod /run/secrets/kubernetes.io/serviceaccount]# cat ca.crt
 -----BEGIN CERTIFICATE-----
 MIIDBTCCAe2gAwIBAgIIZzB0Y38rWzYwDQYJKoZIhvcNAQELBQAwFTETMBEGA1UE
 AxMKa3ViZXJuZXRlczAeFw0yNDA1MDUwOTMyMDZaFw0zNDA1MDMwOTM3MDZaMBUx
 EzARBgNVBAMTCmt1YmVybmV0ZXMwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEK
 AoIBAQDig8ll5If90dLw+NHfbX48c2LC6pt/W+x18okxPba1NsF5MWTF0j8GBW70
 vhwUk6Q9eBj/Z4UREViGfQ8yg+yL3Anzzo+62ocuo6SdPLul1Wa5QBrDLBUKaIl8
 xSzgKH/oGp55pSDXAQX1QOhx6ylXvqd+BGMnmSupDQm8flpOjsHE12GtkDJ8/3MP
 Wdm1311kuE68ifDO2SfHHBhOPOWz3H04CqoumRV0ra6jahoyZ6/elVUILILuEON3
 7bD4KRGS3VLIb5WElHy92sTWml6BzPC/xDCckbmcP7xWg0UgFY8ovC16yW9qnzvE
 TMR6orPwvhbsiO6bZr3H2euRDF//AgMBAAGjWTBXMA4GA1UdDwEB/wQEAwICpDAP
 BgNVHRMBAf8EBTADAQH/MB0GA1UdDgQWBBQGGcBnl7qlwXgz7qFXBrIL5vs9xzAV
 BgNVHREEDjAMggprdWJlcm5ldGVzMA0GCSqGSIb3DQEBCwUAA4IBAQDJjgnnnsK7
 b1MYGel3CeWpEnnq5Gk1VGp1DyppHQ6LKwm7YPLo7GRzjwFspI+USd9wUwluo/nR
 C/149JI/ajwrcQdfSvMPtYCxi5gwZaCM3EIslMiZsEuDHF3h0XZbpMMlhKB0JLlp
 vCiq/aOIUtHUyBqKN4Z3vt1+EPrN9+kaRx7CVbvDcXebCymbeuPJPu7YyM15c8vB
 GpZzW54QTBh6GsLnB2CrPmQsqj+ErC9f69Iayr22yZP5yJpQB0jZZJxbtSri0yhG
 dc28LF1XWwKWOtK7Cx2bJiPcqis7vvcDrwR0kpo5oTXGNzFVVZ2Frjh1jDW32Tj5
 qZi5H8Unl18Y
 -----END CERTIFICATE-----
 [root@mypod /run/secrets/kubernetes.io/serviceaccount]# cat token && echo
 eyJhbGciOiJSUzI1NiIsImtpZCI6Im5PWEctQWJYOWdwWmdWM05DQXdheE5ZZVI2Rk1RSVVMY01HZ09SMG9FRmcifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNzQ3NjQ3Njk0LCJpYXQiOjE3MTYxMTE2OTQsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJqZW5raW5zIiwicG9kIjp7Im5hbWUiOiJteXBvZCIsInVpZCI6IjY0ODY4M2U1LWNlNzUtNGIzMC05MTE0LThlN2ExMGE5NTQ1OCJ9LCJzZXJ2aWNlYWNjb3VudCI6eyJuYW1lIjoiamVua2lucy1tYXN0ZXIiLCJ1aWQiOiJkN2U5YWY0Zi05M2Y2LTQ0ZWUtYTFmNi0wN2MzMTQ4YWVjNzgifSwid2FybmFmdGVyIjoxNzE2MTE1MzAxfSwibmJmIjoxNzE2MTExNjk0LCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6amVua2luczpqZW5raW5zLW1hc3RlciJ9.PzE2Y2k0pUb5f0oSF0xxdQSN4QlgF0BsWufS2A62pW7W-Eg-THolW3dhNHfEv4zajl11e-uRdYPbsm8DXmQ2HRs_PxC4OODZuOBPWy-Pb4RfJJ4cR11_LNkGQXOfLVbv5dRJbjjlDy1_Skf_zW8uwSejXdkgnj26_a_IM-VxzVVEhgkQdWvvrCqnoCKxMwEmtQ2iB-4OZPCB0t98ugc0VRuMjBw4w2Jf_3wgu9A46SpyaaGg1PKVDL3G3iWMkp8ExpQkwr-7VZD-II6NvDJucYfggKGuMlHsAY9XsgvM2zWMc5IchqNLOYX5q3wzln_wmeQhMIAxvsPlhY4UI3Yj9Q

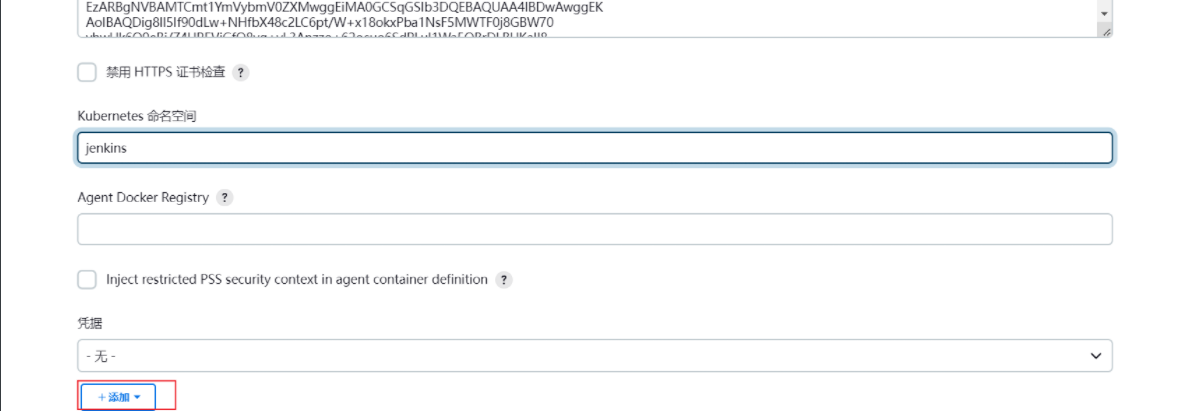

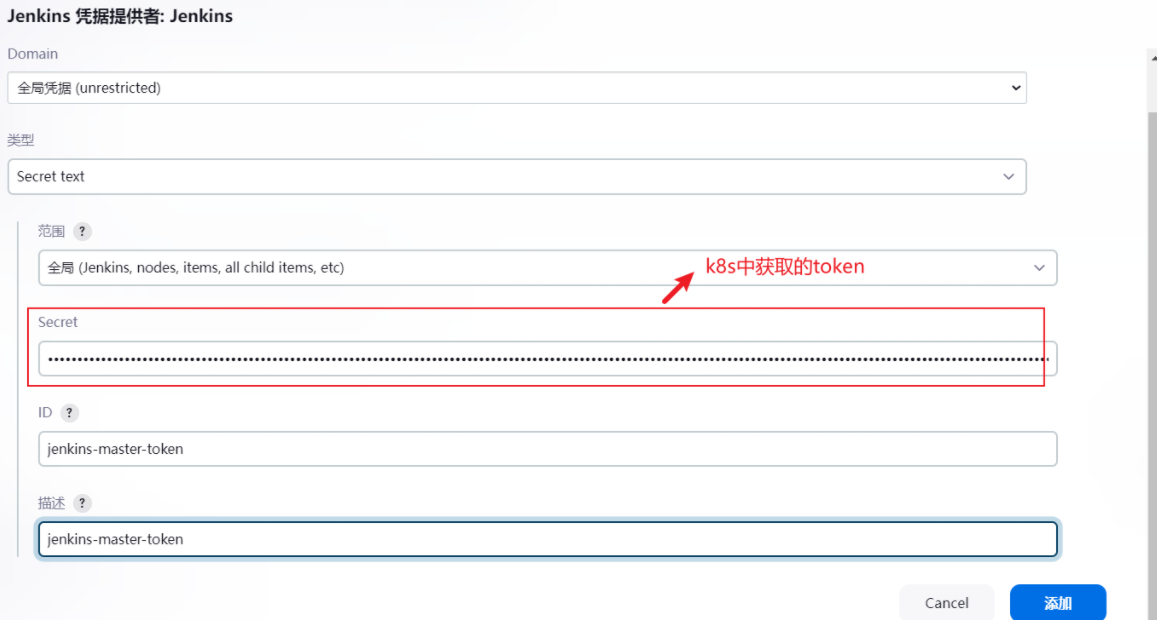

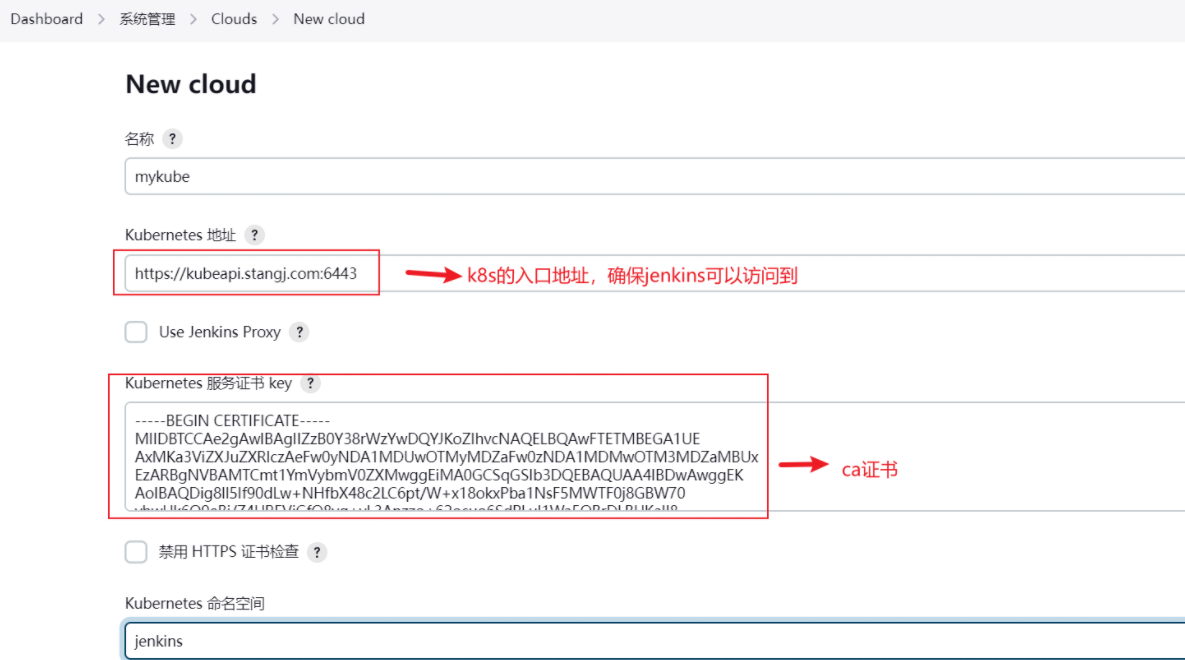

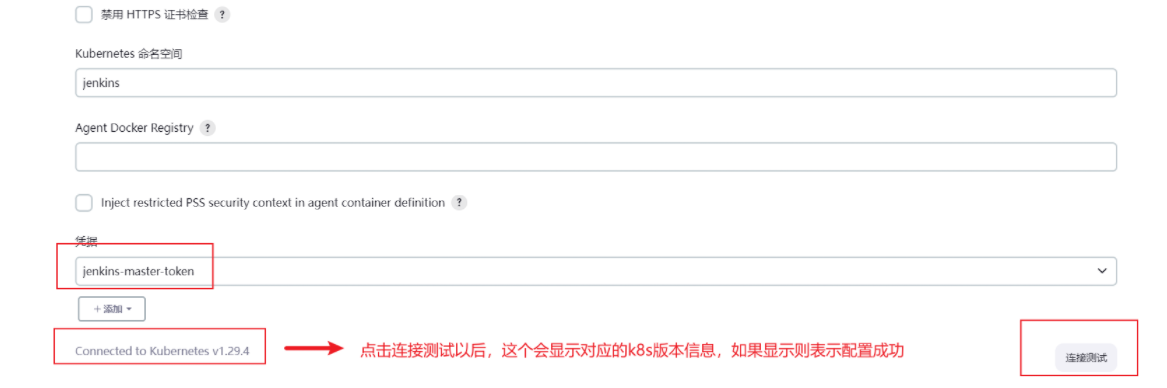

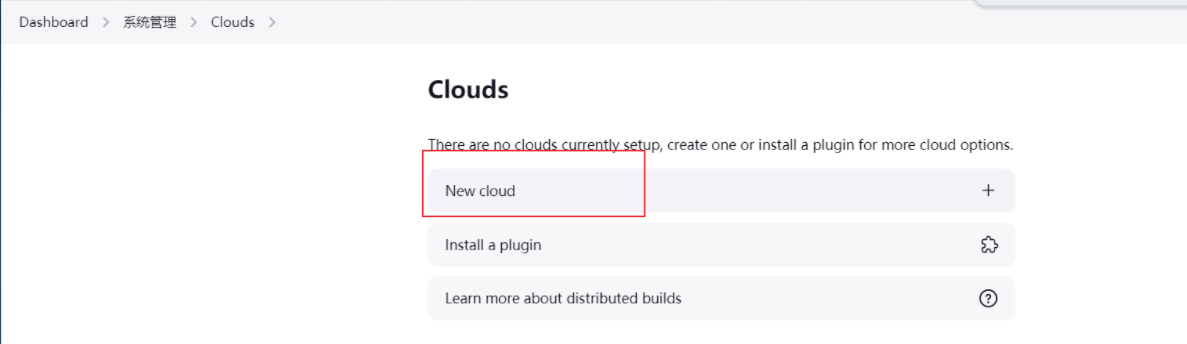

在Jenkins配置kubernetes信息

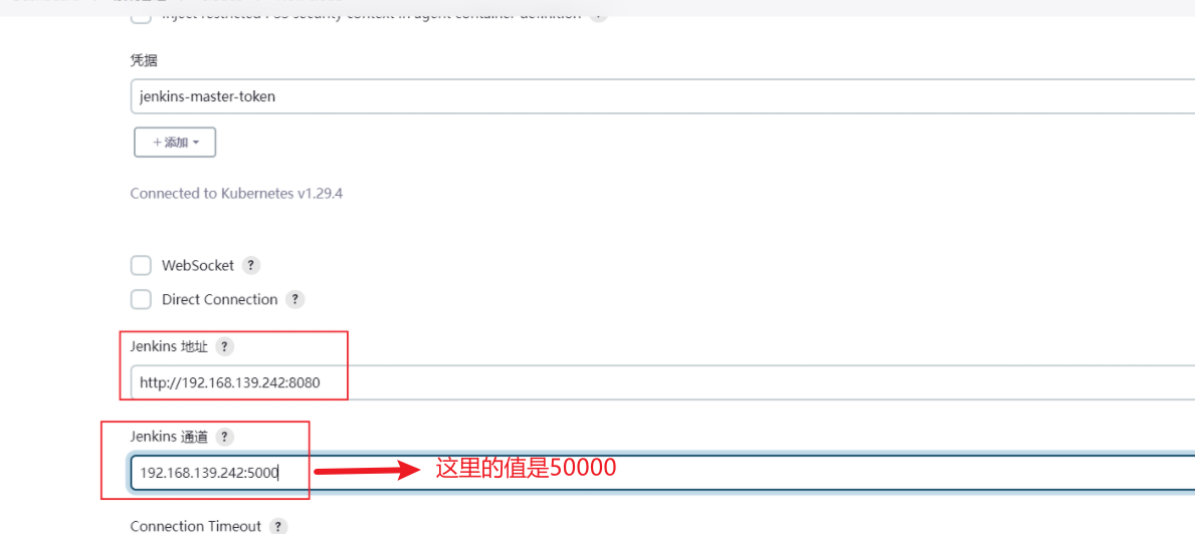

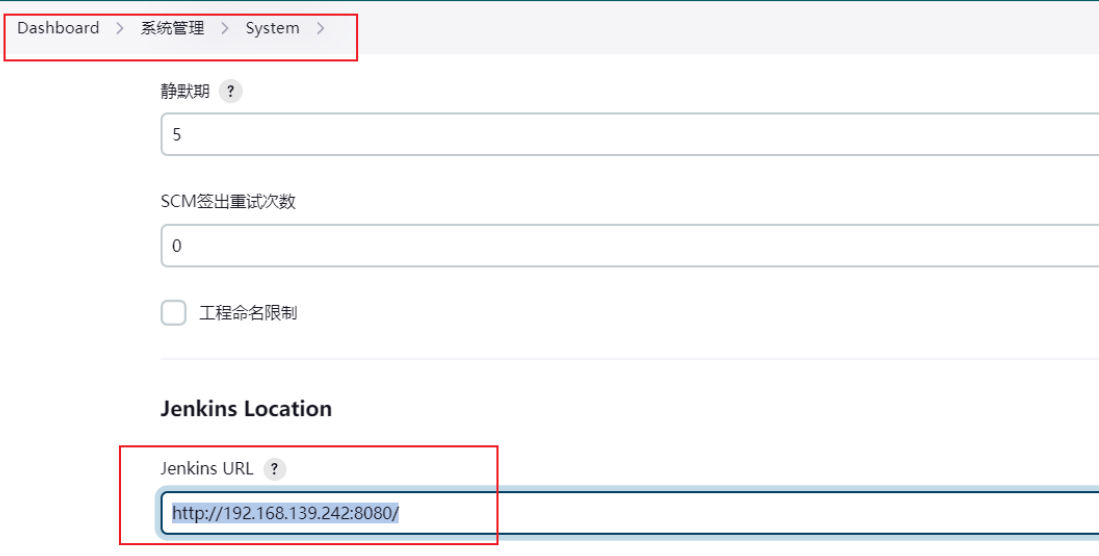

上面的Jenkins地址必须和Jenkins对外暴露的地址一样

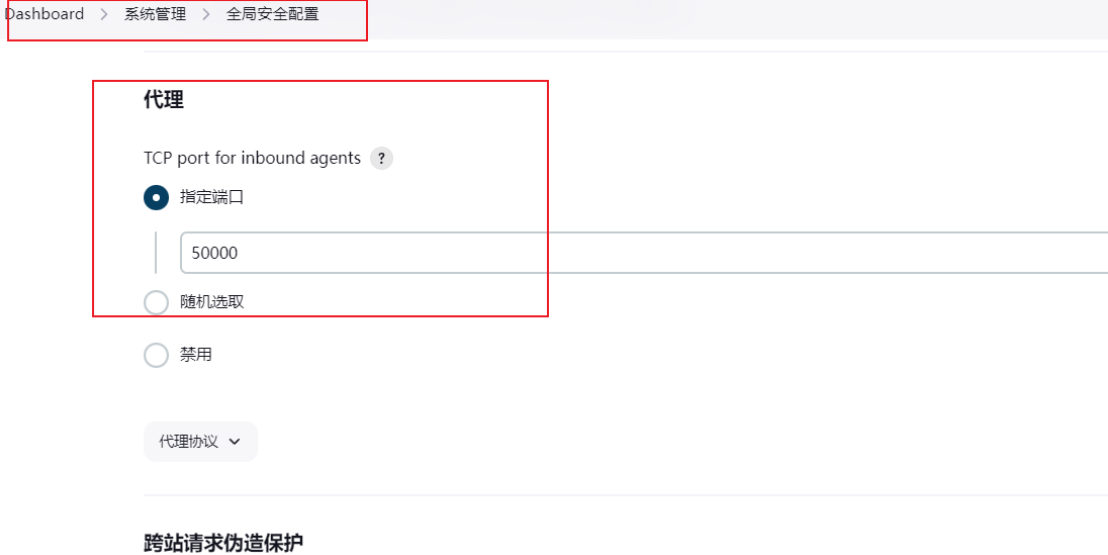

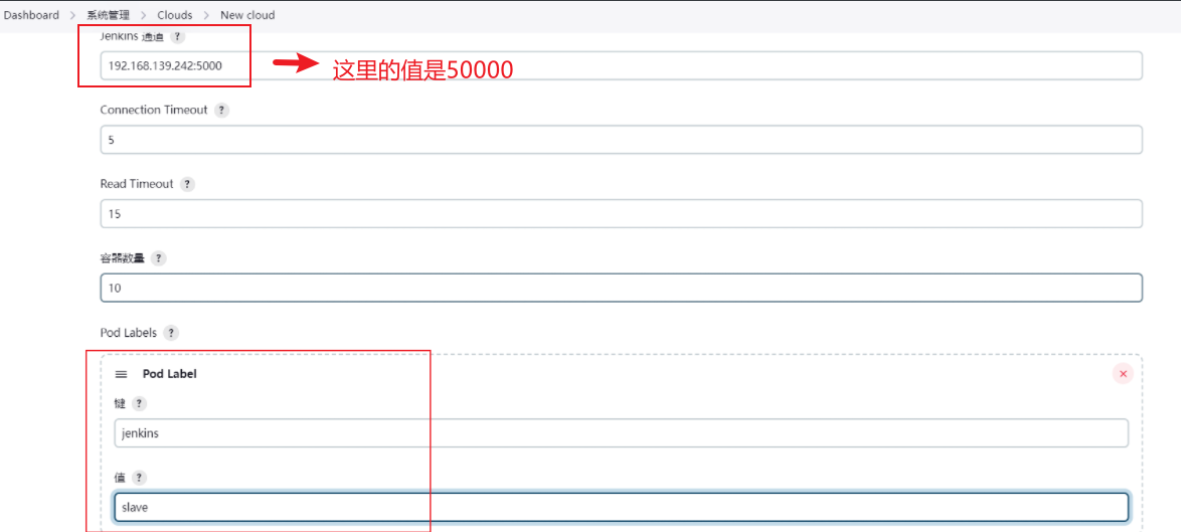

上面的Jenkins通道必须在Jenkins中打开

注意：如果你是通过域名来访问Jenkins的，需要在k8s的coreDNS配置域名解析

例如：

 apiVersion: v1
 data:
   Corefile: |
     .:53 {
         errors
         health {
            lameduck 5s
         }
         ready
         rewrite stop {
             name regex (jenkins.*)\.stangj\.com  {1}.jenkins.svc.cluster.local
             answer name (jenkins.*)\.jenkins\.svc\.cluster\.local {1}.stangj.com
         }
         hosts {
             192.168.139.242 jenkin.xxx  # 添加解析
             fallthrough
         }
         kubernetes cluster.local in-addr.arpa ip6.arpa {
            pods insecure
            fallthrough in-addr.arpa ip6.arpa
            ttl 30
         }
         prometheus :9153
         forward . /etc/resolv.conf {
            max_concurrent 1000
         }
         cache 30
         loop
         reload
         loadbalance
     }
 kind: ConfigMap
 metadata:
   name: coredns
   namespace: kube-system
